Handheld Drone Detection System portable UAV detector Ultra-wide Full-Band Antenna Identify DJI Autel FPV Drones

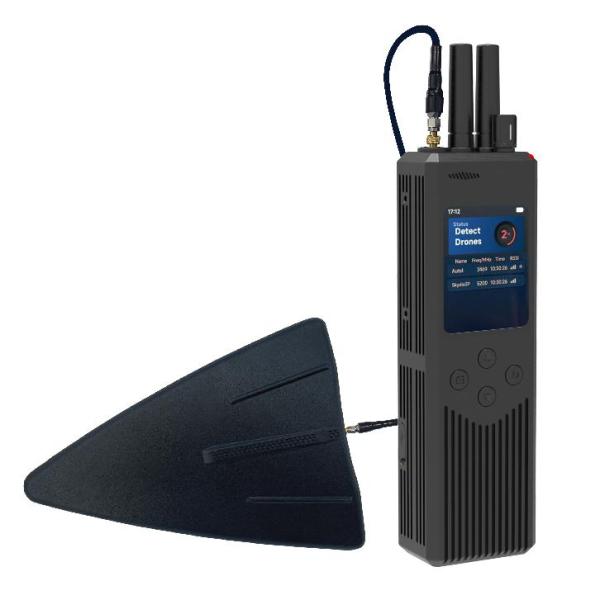

This device is a carry-on device for drone detection, identification and alarm. An optional direction finding antenna comes with the device, giving it the capability to determine the rough direction of a coming drone. The device collects surrounding radio signals and sorts drone signals out via deep learning. When a drone is identified, it alerts people through sound and/or light alarms.
Features
1. Direction finding:Determine the rough drone direction
2. DJI and non-DJI:Mainstream, DIY, FPV, racing drones included
3. Highly portable:Light, small, carry-on, drop-proof
4. Passive technology:No radio signal transmission
5. Low false alarm:Average false alarm rate ＜ once per day
6. Multiple alarms:Flicker and/or sound alarm
7. Visual UI:Real-time display
8. Modular design:Work independently or pair with drone gun
Specifications
1. Work mode:RF sensing
2. Frequency:
Omnidirectional:900MHz,1.1GHz,1.2GHz,1.4GHz,2.4GHz,5.2GHz,5.8GHz；Direction-finding:2.4GHz,5.8GHz
3. Range:
Omnidirectional:0.7-1.2kmDirection-finding: :1-2km(Varies due to environment and drone model)
4. DF error:Azimuth error ~17.5° (at 1 km)
5. Work temperature:-20℃~55℃
6. Duration:~6h
7. Dimension:Handset L*W*H: 235mm*66mm*43mm DF antenna L*W: 300mm*217m
8. Weight:Handset ~800g DF Antenna ~310g
Scenarios
Drone monitoring for major events, security patrols, VIP travel, boarder control, governmental or industrial facilities etc.
